Test Cihazları

FLUKE Networks MicroScanner™ Cable Verifier  MS2-100
Yeni jenerasyon MicroScanner, ses/veri/video kablosu ve servis testlerini kolaylaştırır. Kullanıcı ara yüzü, hızlı, kolay ve kristal kadar berrak testlerin yapılmasını sağlar. Mevcut servisler (10/100/1000 Ethernet, POTS, PoE gerilimi), kablo uzunluğu, kablo haritası, kablo ID ve soruna olan mesafe gibi ,kablo teknisyenlerinin bilmek isteyeceği her şey, arka aydınlatmalı büyük boy ekranda görüntülenebilir. RJ-11, RJ-45 ve coax (F) media’nın tümünü adaptörsüz olarak test eden tek cihaz, birden fazla cihazın yerini almıştır. Dahili IntelliTone™ dijital ve analog tonlamalarını kesin olarak bulur ve herhangi bir kablo veya kablo çiftine yerleştirir - aktif ağlarda dahi. Ergonomik tasarımı, kavrama ve sağlamlığı artırmak için, kalıp üzerinde ince kauçuk özelliğine sahiptir. Taşıma kabı da dahildir.

• Kablo uzunluğu, kablo haritası, kablo ID ve hataya olan mesafeyi tek ekranda görüntüleme
• 10/100/1000 Ethernet, POTS ve PoE dahil, bugünün medya servislerini algılama
• IntelliTone dijital ve anolog tonlama ile sanal herhangi bir kabloyu ya da çift kablo telini yerleştirme

FLUKE Networks Cable IQ™ Qualification Tester- CIQ-100
CableIQ, bağlantı ve kablo bant genişliğine bağlı yeterlilik sorunlarını gidermek isteyen ağ teknisyenleri için tasarlanmış,ilk kablo yeterlilik test cihazıdır. PC’lerin ve switch’lerin hızlarını ve duplex ayarlarını algılar. Akıllı kablo haritası, grafik olarak size hataya olan mesafeyi gösterir. (Örnek pin 1, 37.cm’de kırılma gibi). Hafif, sağlam, güvenilir cihaz, tüm bakır kablo testlerini yapar. Sorunları kolay, doğru ve hızlı şekilde çözümlemenize yardımcı olur ve daha hızlı ağ süratine sorunsuz olarak geçiş yapabilmenizi sağlar.

YOKOGAWA AQ1000 Optik Ölçüm Cihazı (OTDR)
This AQ1000 is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH). Although it is positioned as an entry-level model, it still retains Yokogawa’s established standards of quality/reliability and features characteristics which are usually present in higher-level models, such as a high-quality capacitive multi-touch touchscreen and wireless connectivity.

AFL FLX380 FlexTester3 Ölçüm Cihazı (OTDR) LinkMap Özellikli
Verify point-to-point and PON broadband optical network installations
Troubleshoot live FTTx PON networks
Verify network length, link loss and optical return loss (ORL)
Generate tones for positive fiber identification
Visibly trace fibers or locate fiber bends or breaks using integrated VFL
Patented in- or out-of-service testing from a single port*
Even easier troubleshooting using LinkMap™ with Pass/Fail!
Test up to 160km or through PON splitters up to 1:128
Industry-leading attenuation and PON dead zones
Reduce test time and setup errors with intelligent source and power meter
>12-hour continuous battery operation
Rugged, hand-held and lightweight (<1 kg)
High-contrast display, easily viewed even in direct sunlight
Instant On; Ready to test in <5 sec

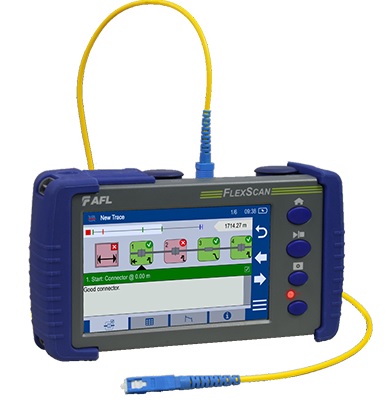

AFL FlexScan OTDR with SmartAuto™ and LinkMap
Features
•• Fast, accurate OTDR network characterization or fault location
•• Test up to 1:64 PON with 20 m PON dead zone
•• Easy to understand LinkMap results with pass/fail indications
•• 1310/1550/1650 nm PON OTDR (in- or out-of-service testing)
•• 1310/1550 nm versions for complete network characterization
•• 1550 and 1650 nm versions for cost-effective troubleshooting
•• Integrated Source, Power Meter, VFL (visual fault locator)
•• Bluetooth and WiFi communications
•• Compatible with FOCIS Flex connector inspection system
•• Rugged, lightweight, hand-held for field use
•• Large, bright touchscreen display easily viewed indoors and out
•• Internal / external data storage via USB, Bluetooth, or WiFi
Applications
•• PON or point-to-point network verification or troubleshooting
•• OTDR testing plus Insertion Loss and Power measurements
•• Locate faults exceeding industry or user pass/fail thresholds
•• Visually pinpoint location of macro-bends or breaks inside
cabinets and splice closures
Performance-packed: With SmartAuto multi-pulse acquisition, up to 37 dB dynamic range and best-in-class 20 m PON dead zone,
FlexScan PON OTDRs test FTTH PONs up to 1:64 while still detecting and measuring events only meters apart.
User-friendly: FlexScan OTDRs enable both novice and expert technicians to quickly, reliably and accurately detect, locate, identify and
measure optical network components and faults. After applying industry-standard or user-set pass/fail criteria, the network is displayed
using FlexScan’s intuitive, icon-based LinkMap view. Acquired results may be stored internally or externally. FlexScan automates test
setup, shortens test time and simplifies results interpretation, improving efficiency and reducing the cost of test.
Pocket-sized: At 3.5 x 6 x 1.75 in. (86 x 160 x 43 mm) and less than one pound (0.4 kg), FlexScan OTDRs truly fit in your pocket, yet
still provide a large, bright indoor/outdoor touchscreen display and all-day operation.
And Affordable: With optional connector inspection, integrated source, power meter and VFL, FlexScan offers an all-in one solution,
ensuring technicians have everything they need to locate and resolve optical network issues. Uploaded results may be viewed and
reports may be generated using the included Windows-compatible TRM® 2.0 Test Results Manager software.
Available in Convenient, Cost-saving Installation and Troubleshooting Kits - Bundle FlexScan with your choice of launch
cable, FOCIS Flex connector inspection probe and tips, and/or AFL’s universal optical fiber identifier (OFI). The universal OFI works with
all fiber types – including bend-insensitive fiber – and is available with or without integrated power meter (OFI-BIPM or OFI-BI).
